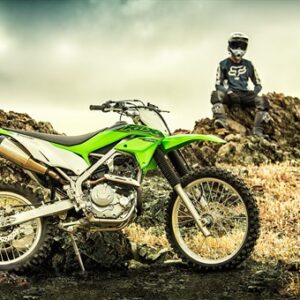

Kawasaki KLX 230R 2021
KSh 4,399.00
| Engine and transmission | |
|---|---|
| Displacement: | 233.0 ccm (14.22 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 9.4:1 |
| Bore x stroke: | 67.0 x 66.0 mm (2.6 x 2.6 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. DFI® with 32mm Keihin throttle body |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | TCBI Electronic Advance |
| Lubrication system: | Forced lubrication, wet sump |
| Cooling system: | Air |
| Gearbox: | 6-speed |
| Transmission type, final drive: |
Chain |
| Clutch: | Wet multi-disc, manual |
| Driveline: | Sealed chain |
| Chassis, suspension, brakes and wheels | |
| Frame type: | High-tensile steel, box section perimeter |
| Rake (fork angle): | 27.5° |
| Trail: | 117 mm (4.6 inches) |
| Front suspension: | 37mm telescopic fork |
| Front wheel travel: | 221 mm (8.7 inches) |
| Rear suspension: | Uni-Trak® linkage system and single shock with adjustable spring preload |
| Rear wheel travel: | 224 mm (8.8 inches) |
| Front tyre: | 80/100-21 |
| Rear tyre: | 100/100-18 |
| Front brakes: | Single disc. Petal disc. Dual-piston caliper. Optional ABS. |
| Diameter: | 256 mm (10.1 inches) |
| Rear brakes: | Single disc. Petal disc. Single-piston caliper. Optional ABS. |
| Diameter: | 220 mm (8.7 inches) |
| Wheels: | Wire spoked |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc: | 133.0 kg (293.3 pounds) |
| Seat height: | 884 mm (34.8 inches) If adjustable, lowest setting. |
| Overall height: | 1166 mm (45.9 inches) |
| Overall length: | 2106 mm (82.9 inches) |
| Overall width: | 836 mm (32.9 inches) |
| Ground clearance: | 264 mm (10.4 inches) |
| Wheelbase: | 1379 mm (54.3 inches) |
| Fuel capacity: | 7.57 litres (2.00 gallons) |
| Other specifications | |
| Color options: | Lime Green |
| Starter: | Electric |
| Factory warranty: | 12 months |
| IDENTIFICATION | |
|---|---|
| Model Type | Off-Road |
| Warranty | 6 |
| Insurance | |
| Finance | |
| ENGINE: | |
| Engine Type | Single-Cylinder |
| Cylinders | 1 |
| Engine Stroke | 4-Stroke |
| Cooling | Air |
| Valves | 2 |
| Valves Per Cylinder | 2 |
| Valve Configuration | SOHC |
| Compression Ratio | 9.4:1 |
| Starter | Electric |
| Fuel Requirements | Regular |
| Fuel Type | Gas |
| TRANSMISSION: | |
| Transmission Type | Manual |
| Number Of Speeds | 6 |
| Primary Drive (Rear Wheel) | Chain |
| WHEELS & TIRES: | |
| Front Tire (Full Spec) | 80/100 – 21 51M |
| Rear Tire (Full Spec) | 100/100 – 18 59M |
| BRAKES: | |
| Front Brake Type | Hydraulic Disc |
| Rear Brake Type | Hydraulic Disc |
| TECHNICAL SPECIFICATIONS: | |
| Wheelbase (in/mm) | 53.5 / 1358.9 |
| Fuel Capacity (gal/l) | 1.7 / 6.4 |
